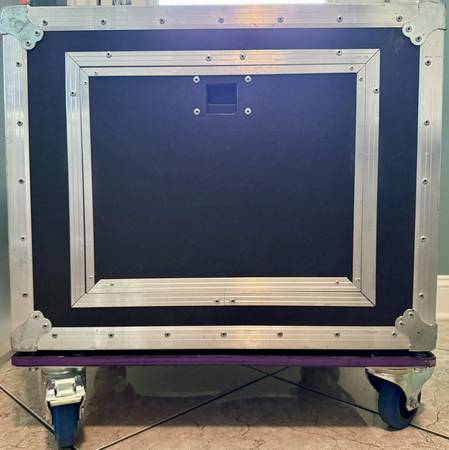

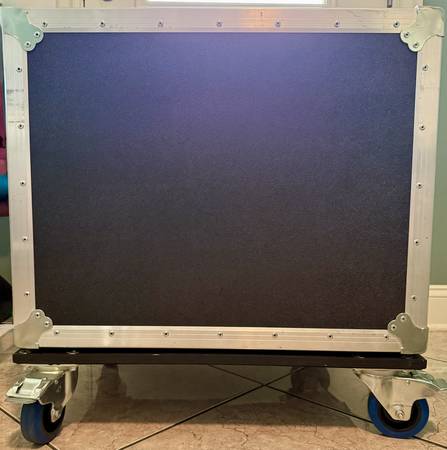

Allen & Heath Qu-SB & Digital Stage BoxWith Road Case - $3,800 (Metairie)
condition:
like new
make / manufacturer:
Allen & Heath
model name / number:
Qu-SB
size / dimensions:
6.9/17.2/6.4
QR Code Link to This Post
Tech Specs
Type 18 x 14 digital mixer interface for iPad
Channels 16
Inputs - Mic Preamps 16 x XLR
Phantom Power Yes
Inputs - Line 16 x 1/4", 2 x 1/4" (stereo paired)
Outputs - Main 2 x XLR (main out)
Outputs - Other
2 x 1/4" (stereo matrix out), 4 x XLR (mono mix out), 6 x XLR (3 stereo mix outs)
Aux Sends
11 monitor mixes (4 mono, 7 stereo), 4 x dedicated FX sends/
returns
Busses/Groups
4 x stereo groups, 4 x DCA groups, 4 x mute groups
Data I/O
2 x Ethernet (Cat5 dSnake port, Network link)
USB
1 x Type B (audio interface), 1 x Type A (direct recording/playback)
Computer Connectivity
USB (32 x 32)
I/O Expansion Slots
Expansion via dSnake for additional inputs and networking
Headphones 1 x 1/4"
EQ Bands 4-band parametric, Graphic
Effects
4 x FX engines (reverbs, delays, double tracking, chorus, symphonic, phaser, flanger)
Signal Processing
Compression, Gates, Filters
Features
Spectrogram feedback elimination, RTA with peak band indication
DAW Control
DAW MIDI control
Software
Qu-Pad iPad app, iLive FX library, iPhone/Android personal monitor app
Rackmountable Yes (kit sold separately) kit come with unit
Height
6.4"
Depth
6.9"
Width
17.2"
Weight
9.9 lbs.
Type: Digital Stage Box
Compatibility: SQ, Qu, Avantis, AHM-64, GLD-Series Digital Mixing Systems
Channels: 16 x 8
Inputs - Mic Preamps: 16 x XLR
Phantom Power: 16
Outputs - Main: 8 x XLR
Data I/O: 2 x EtherCon
Power Source: Standard IEC AC cable
Height: 6.1"
Depth: 7.4"
Width: 16.2"
Weight: 10.6 lbs.
Manufacturer Part Number: AH-AB-168
